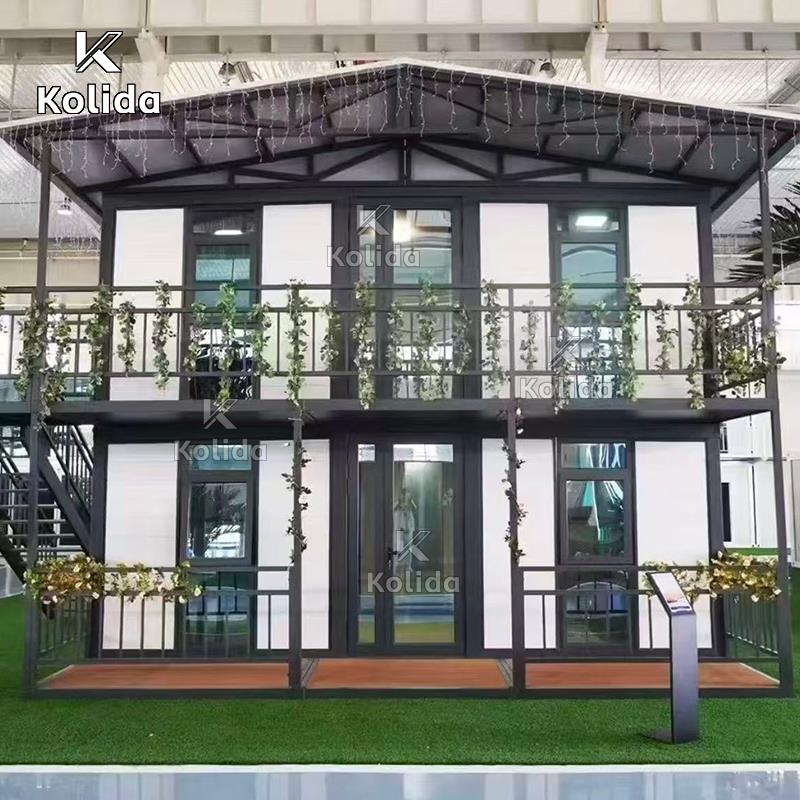

      Double Story Expandable Container House

      Double-layer design, larger space，better views. This expandable prefab steel container house is waterproof, insulated, and foldable, making it ideal for various applications such as homes, offices, or medical stations.

      Size： 20FT/30FT/40FT Customized

      Building Area： 72m2,112m2,144m2

      Layout： Four bedrooms, two living room, two kitchen, and two bathroom.

      Material： Steel, Sandwich Panel, Other

      Wall Thickness： Standard, Thicken

      Door： Thermal Break Aluminum Door,Aluminum Alloy Door ,KFC Door

      Window： Thermal Break Aluminum Casement Window,Thermal Break Aluminum Sliding Windo,Thermal Break Aluminum Bottom-Hung Window,Aluminum Alloy Sliding Window

      Price： $9730

      Color： Wood Grain ,White ,Grey ,Customized Colors

      Send Inquiry Conant Us

      Secure payments

      Every payment you make on Kolidahouse.com is secured with strict SSL encryption and PCI DSS data protection protocols

      Money-back protection

      Claim a refund if your order doesn't ship, is missing, or arrives with product issues
  • Photo Display
  • Parameters
  • Case

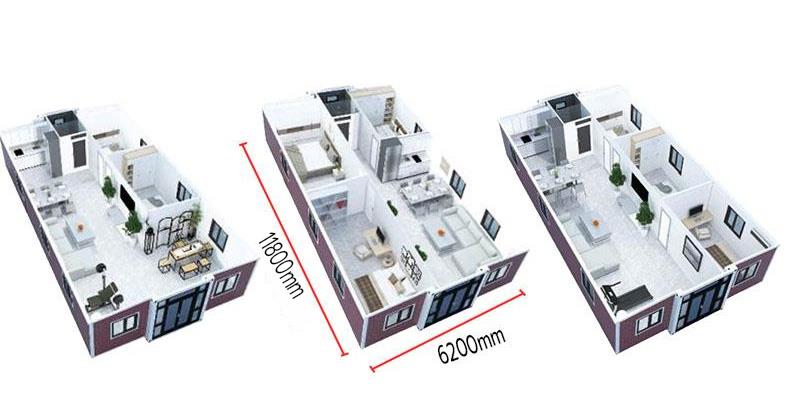

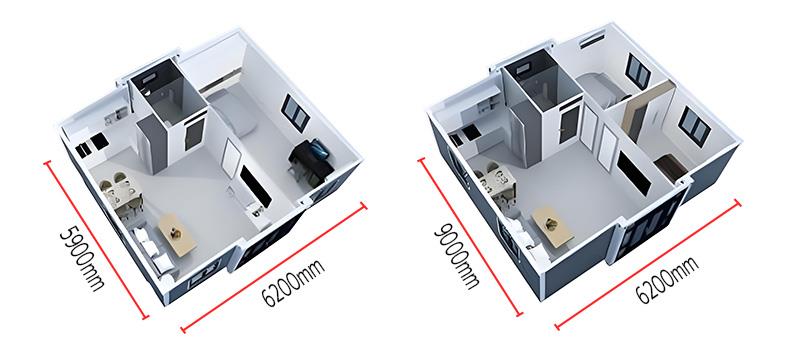

Planar Structure Diagram



one living room,one bedroom one living room,one bedroom
one restroom,one kitchen one restroom,one kitchen
one living room,two bedroom one living room,two bedroom one living room,two bedroom
one restroom,one kitchen one restroom,one kitchen one restroom,one kitchen

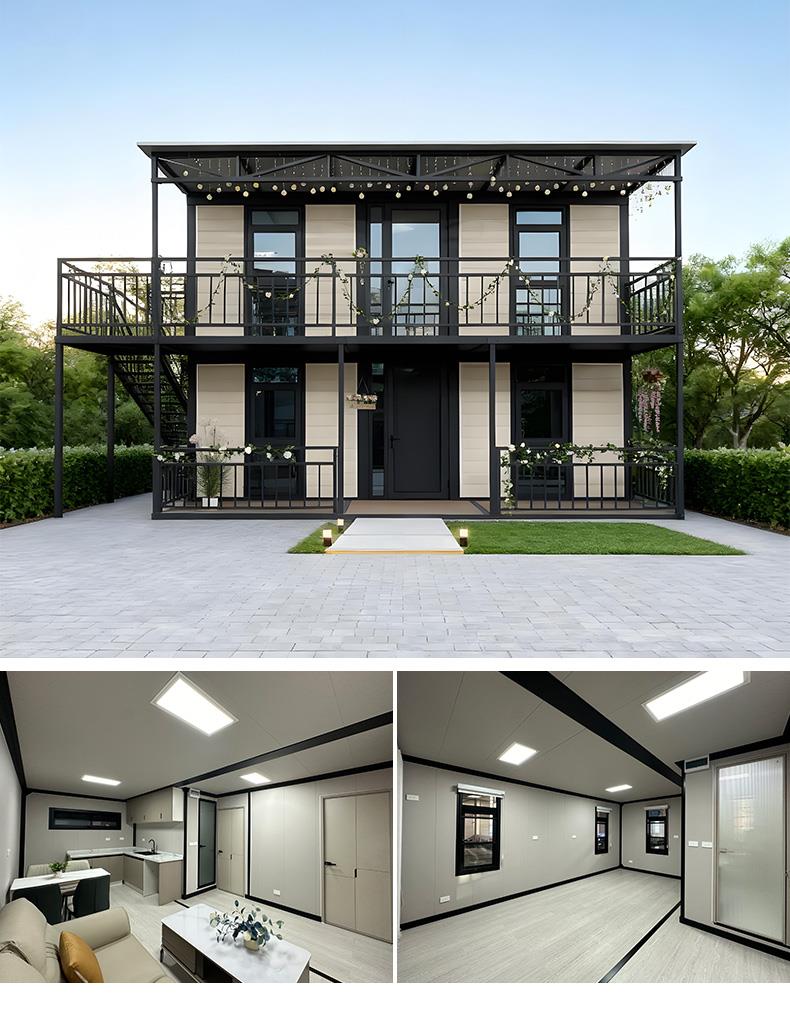

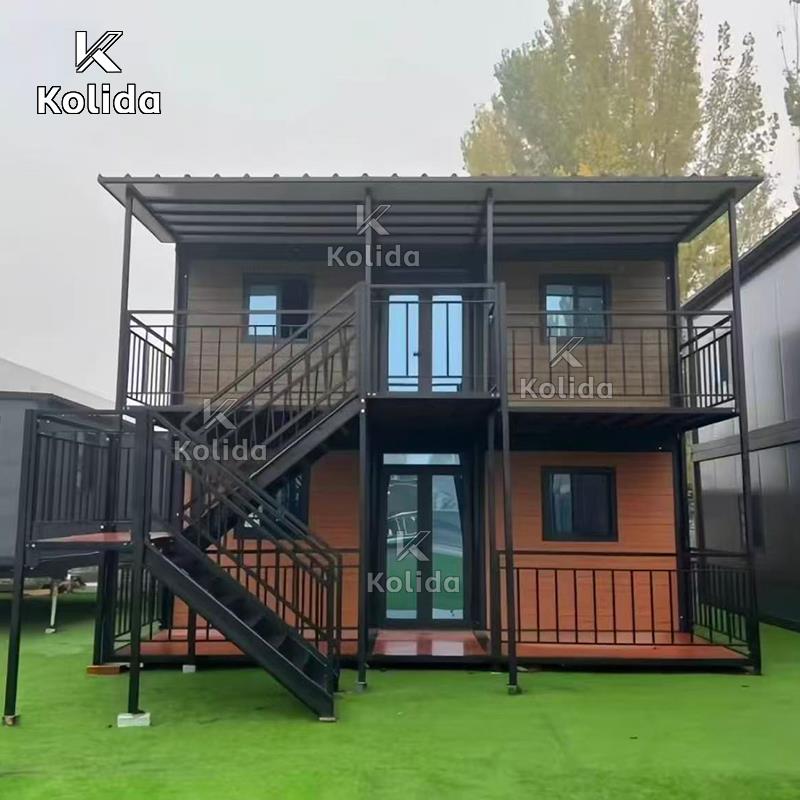

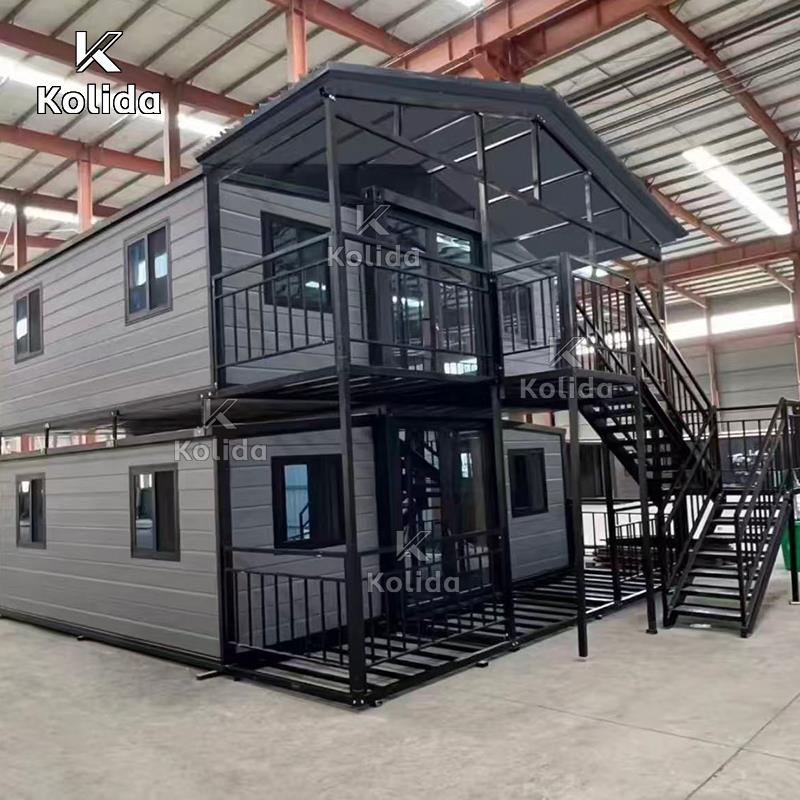

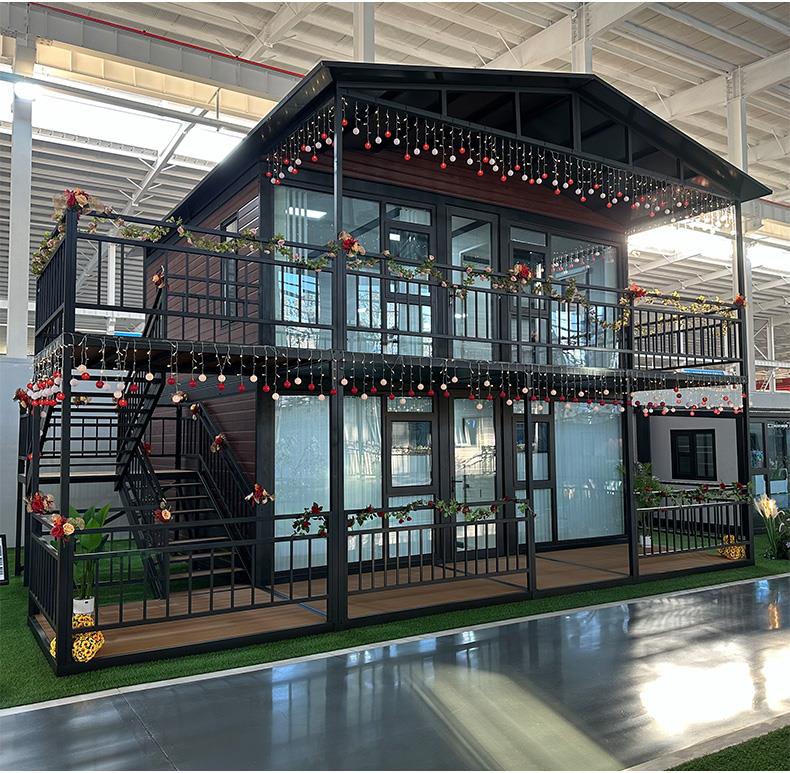

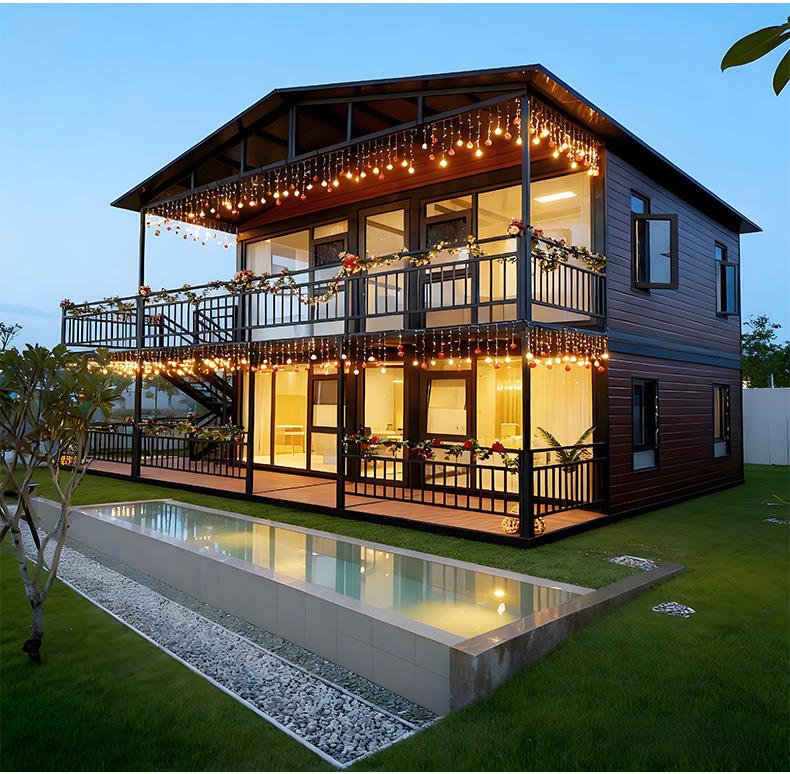

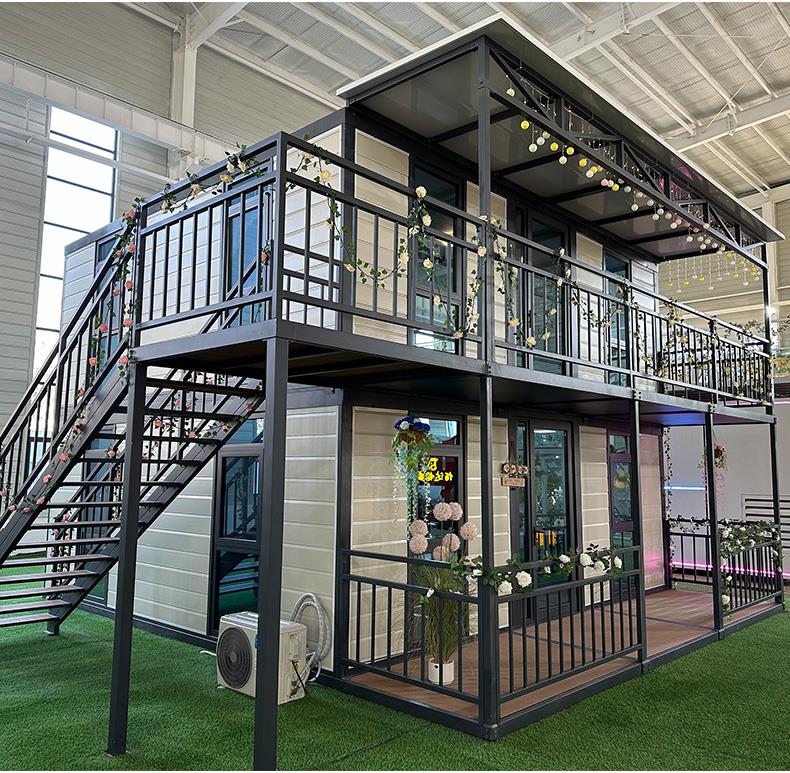

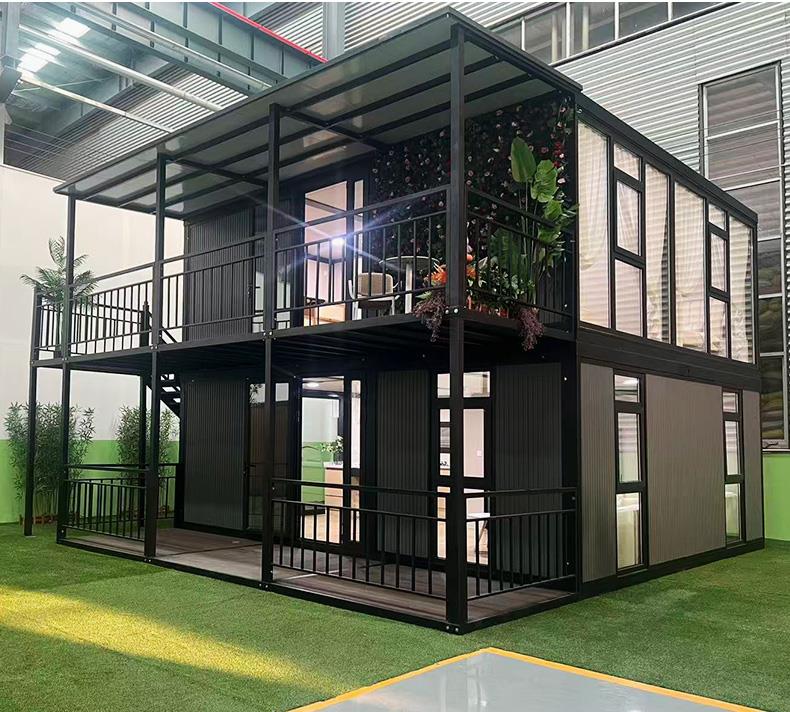

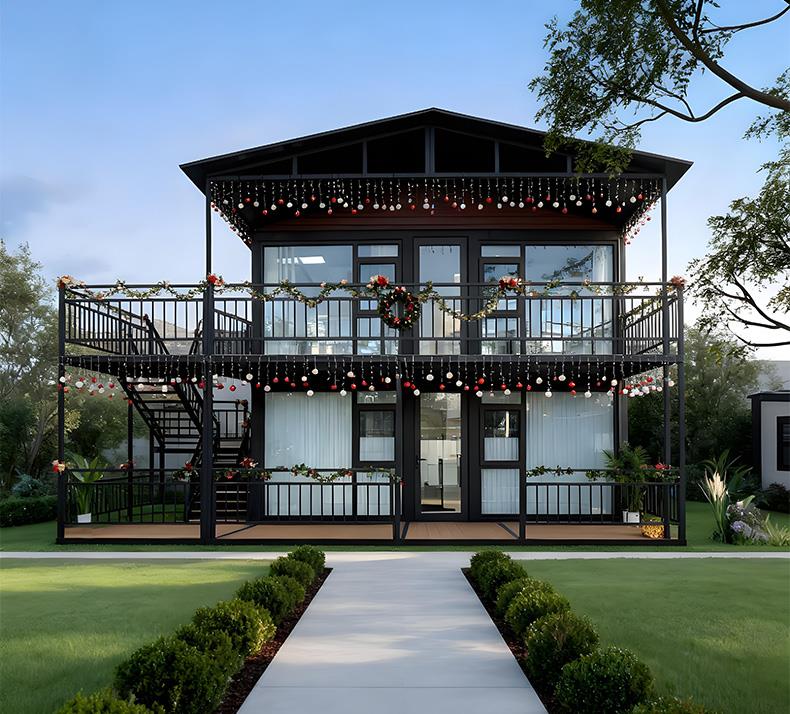

Exterior Display
Indoor Display

               ENTRANCE DOORS


               WINDOW

               WALLBOARD

               DECORATIVE FLOORING

               TOILET & BATHROOM

               KITCHEN


           Trade Show Client

           PRODUCT PROCESS

  20FT(scaled-down) 20FT 30FT 40FT
Product
Expandable size L5.9*W4.7*H2.48m L5.9*W6.3*H2.48m L9*W6.2*H2.48m L11.8"W6.2*H2.48m
Folding size L5.9*W0.7*H2.48m L5.9*W2.2*H2.48m L9*W2.2*H2.48m L11.8*W2.2*H2.48m
Total area 27.5㎡ 36㎡ 56㎡ 73㎡
Total Weight 2t 2.8t 6t 7.5t
Transport 1X40HQ
can load 6 units 		1X40HQ
can load 2 units 		1X40HQ
can load 1 units 		1X40HQ
can load 1 units

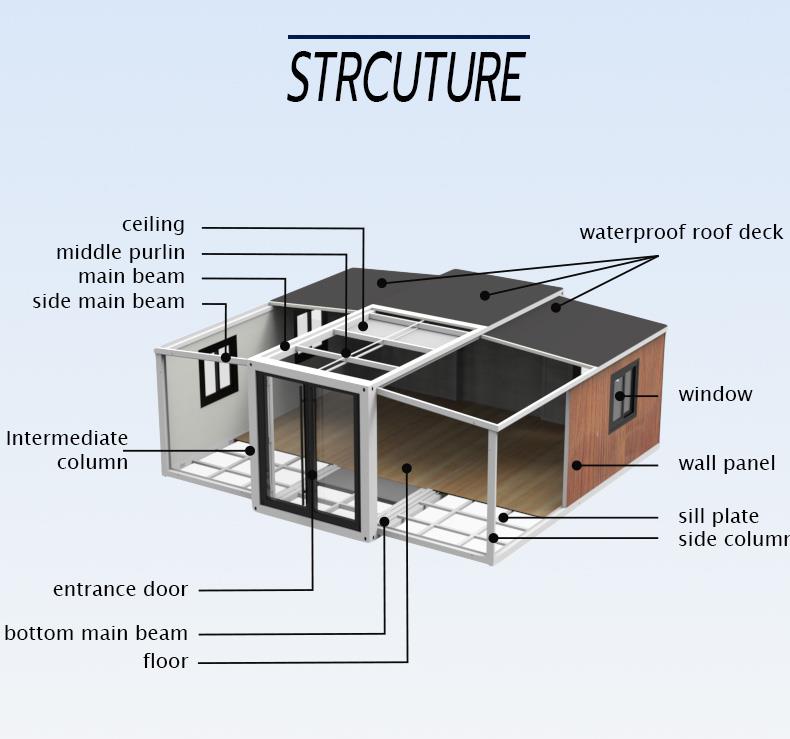

 Frame structure   dle Roof Beam  80*100*T3.0mmQ235B
  dle Floor Beam  80*140*T3.0mmQ235B
 End Side Beam  T2.0mmQ235B Z-shape bending part
  dle Columm  150*210*T3.0mmQ235B
 Lifting Head  T6mmQ235B
 Overall Frame Protective Coating  Electrostatic spary/white plastic
 Roof  External Roof Panel  T50mm flame-retardant purified foam board
 Internal Ceiling  T193 suspended ceiling
 Wall Panel  Side and Front/Rear Wall Panel  T65mm flame-retardant purified foam board
 Top Insulation/External Partition  T50mm flame-retardant purified foam board
 Floor  Bottom layer  18mm fireproof cement floor/18mm banboo-wood floor
 Surface layer  SPC Stone-Plastic Floor/PVC 2.0mm
 Door  Thermal Break Aluminum Door/Aluminum Alloy Door/KFC Door
 Windows  Thermal break aluminum windows/Aluminum alloy windows
 Standard Cabinet  L-shape cabinet,includes sink(marble countertop colors are optional)
 Bathroom Toilet,washbasin,mirror,cabinet,floor drain Ventilation windows,Plumbing pipes(110mm,75mm,20mm)
 Shower room  Rectangular Tempered Glass Integrated Bathroom
 Electrical System Eelctrical wiring is installed strictly according to moisture-proofstandards.All electrical products must comply with CEcertification Cricuit connections folllow electrical engineering standards. Includes:two indoor LED lights ,two ceiling lights 3single-switch five hole sockets1single switch,3 ton-hole socaket,one air conditioner socaket, one 20A leakage protector, Voltage:220V,50Hz
